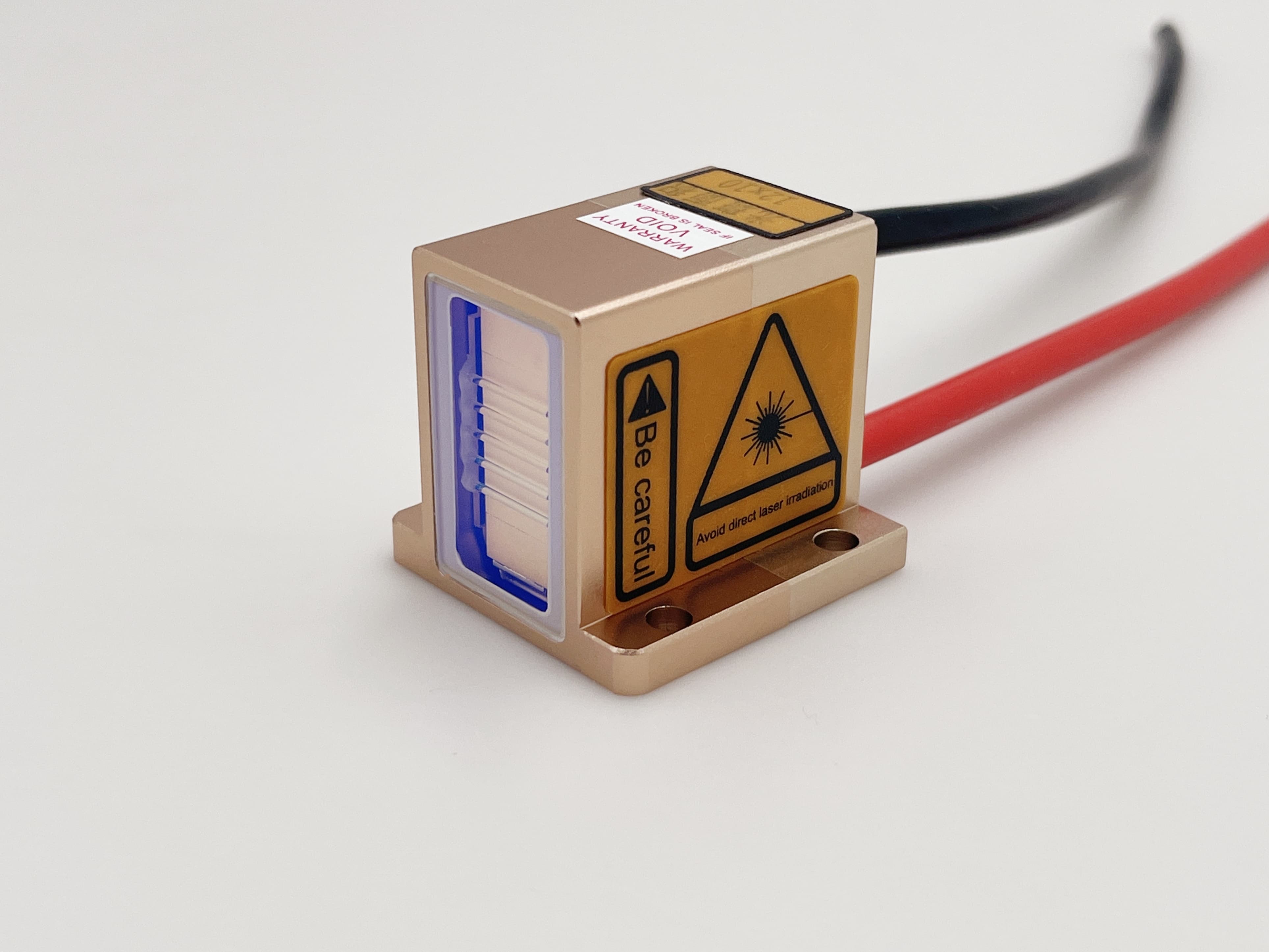

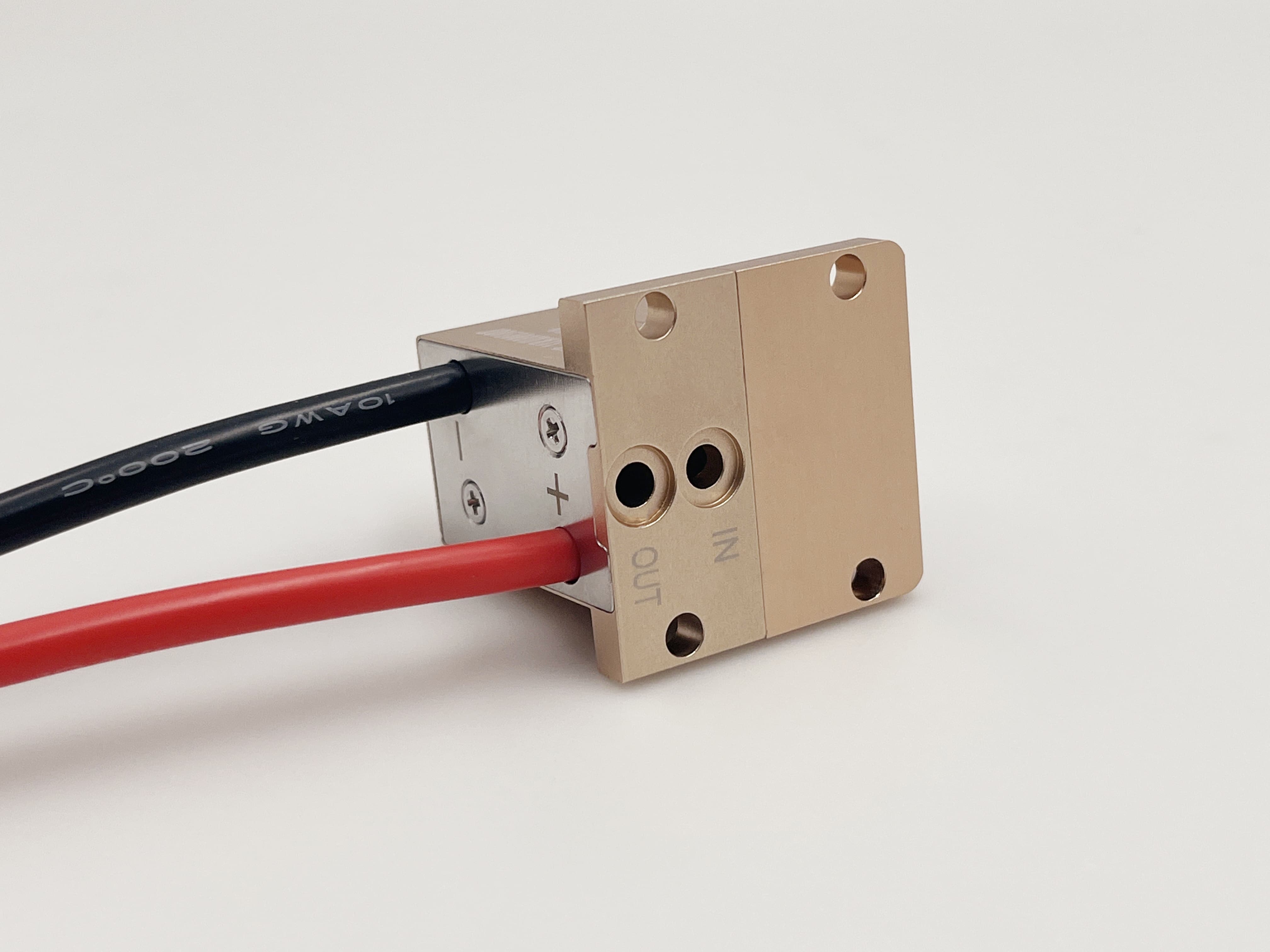

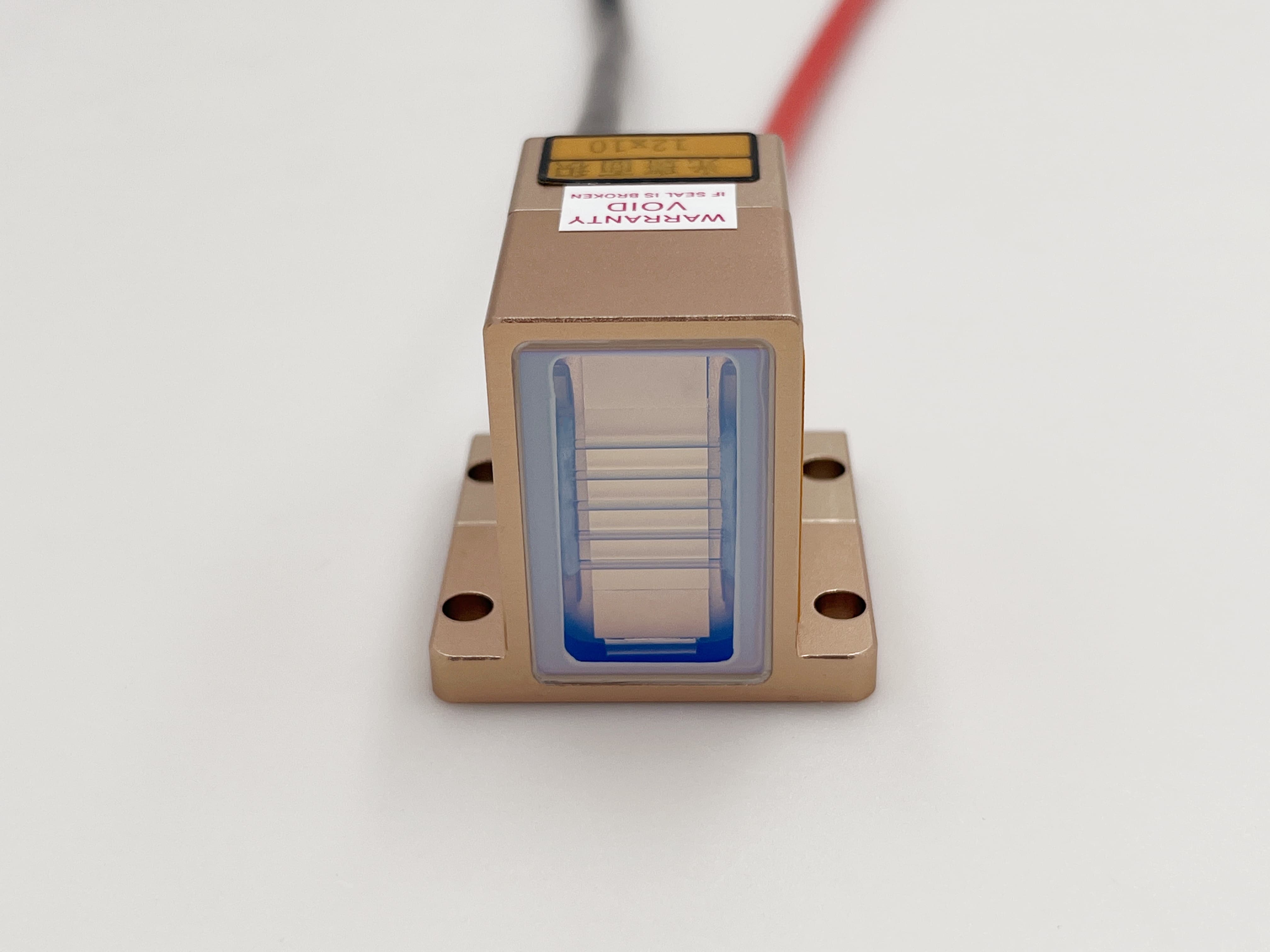

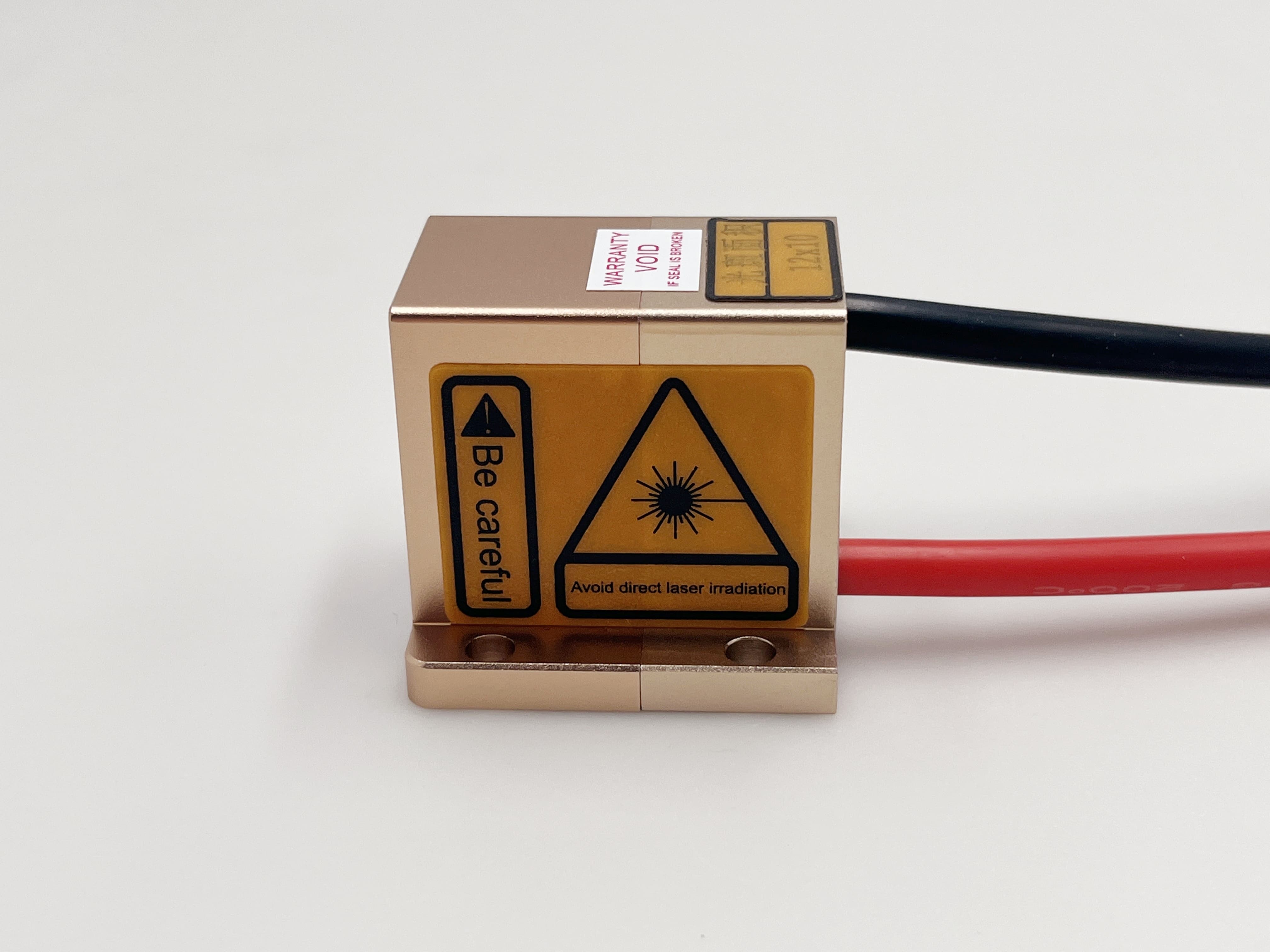

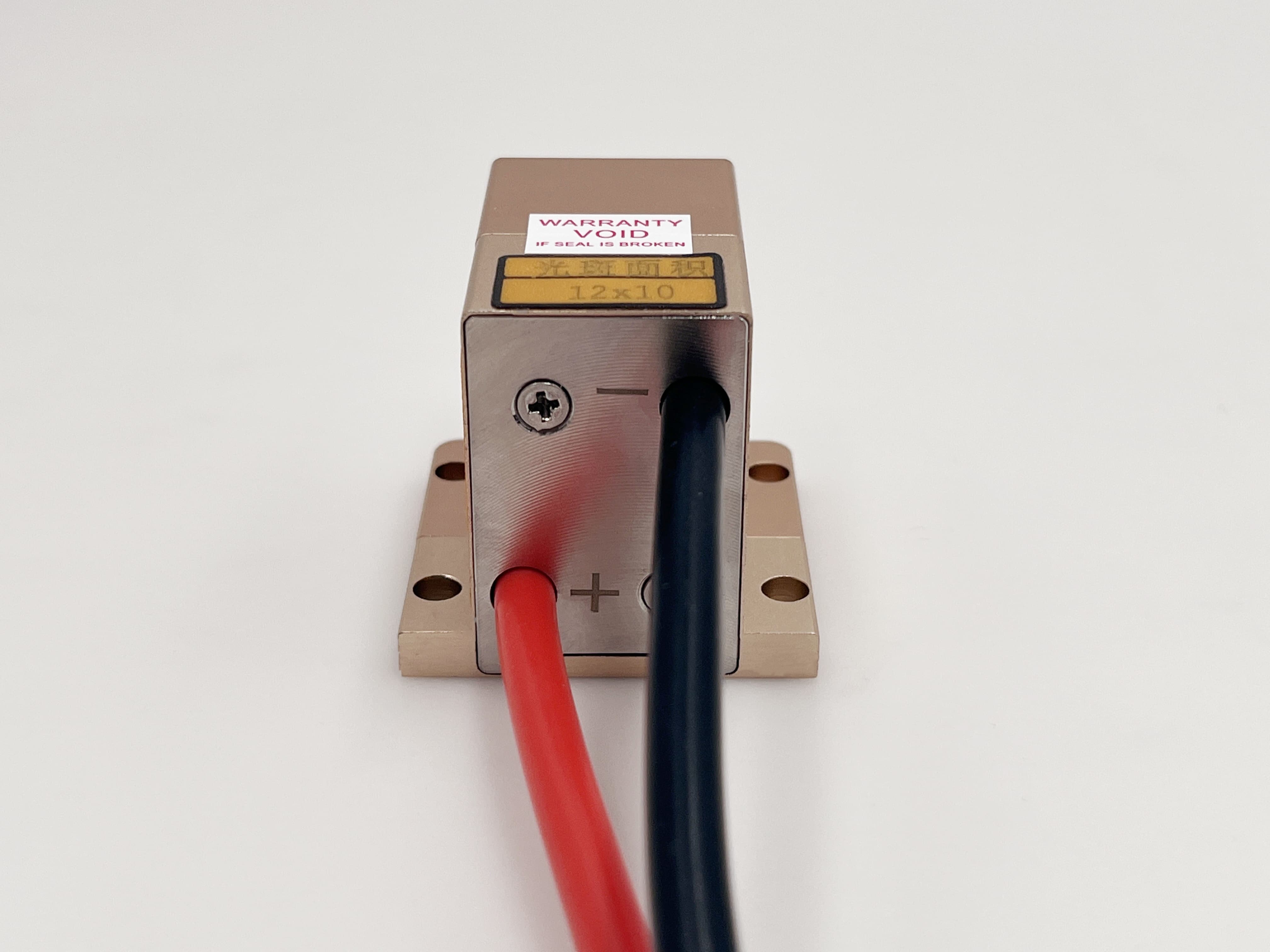

LT Laser Diode Module for Hair Removal Handle Repair 500W 808nm

Designed as a critical spare part for hair removal systems, this laser source enables flexible and effective treatment across a wide range of skin and hair types.

Featuring selectable wavelengths—808nm, 755nm, 940nm, and 1064nm—this module provides tailored solutions for diverse clinical needs.

At its heart lies the high-performance Coherent bar chip sourced from the United States, ensuring stable output, long service life, and consistent reliability. Engineered for integration into professional and premium home-use hair removal devices, this laser module represents the pinnacle of precision, safety, and adaptability in permanent hair reduction.

product details

Introduction

1. Hard solder package.
2. High reliability and Stability.
3. Collimation optional.
4. 755nm,808nm,940nm,1064nm multiple wavelength optional.
5. Two-year warranty service provided.
6. Standard Industrial structure

Production parameter

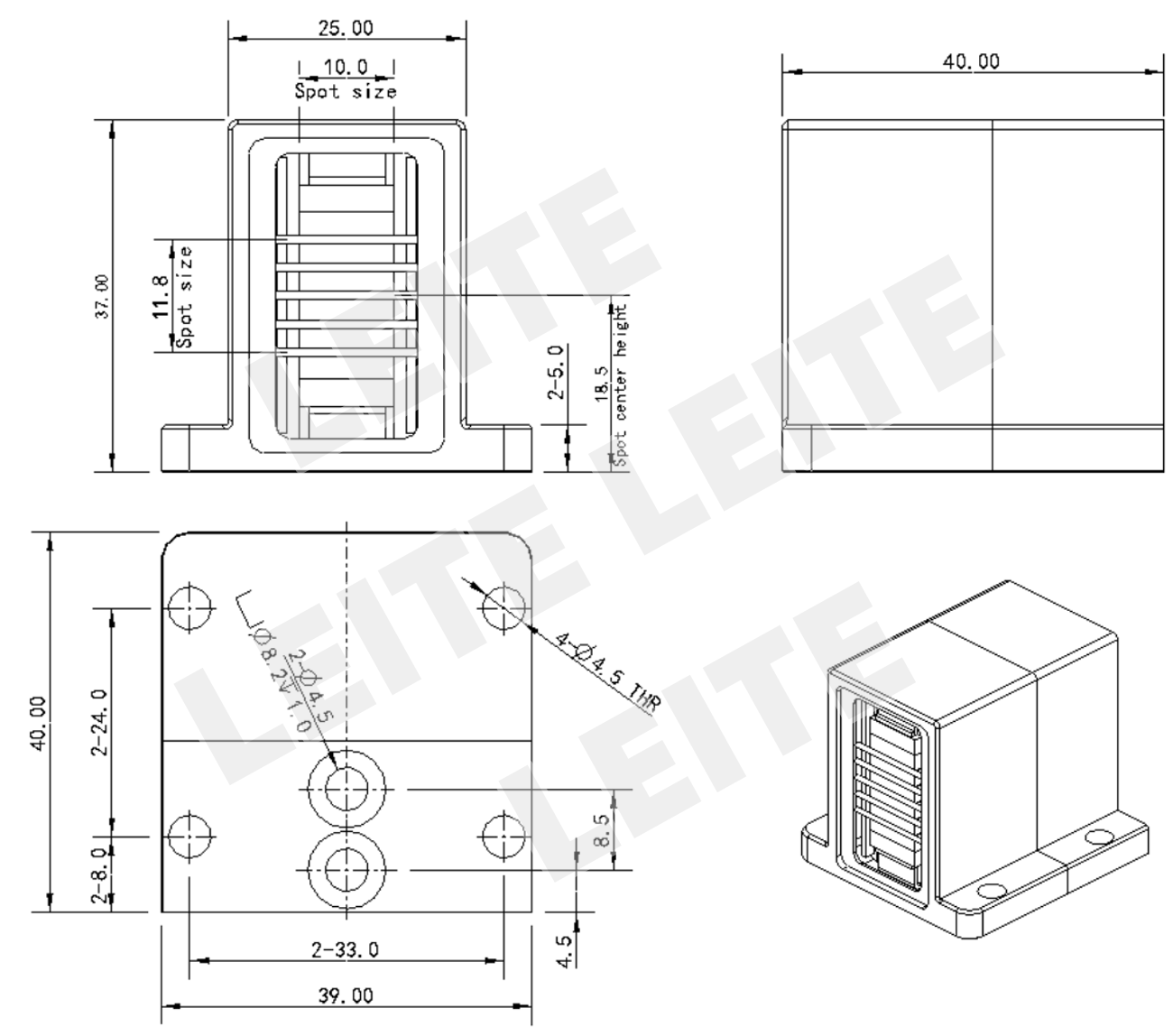

HPL-500W parameter
HPL 500W	100W/bar	UNIT
Output Wavelength	808,755,940,1064nm Optional	nm
Wavelength Range	±15nm	nm
Bar Quantity	5	pcs
Peak Power	500	W
Bar Pitch	2.95	mm
Spot Size	10*11.8	mm²
Diverge Angle	Fast≤31°；Slow≤8°	°
Wavelength drift Coefficient	0.28	nm/℃
Optical Collimation	Customizable Spot Size	/
Working Current (Iop)	≤100, Typical 95	A
Working Voltage	1.8V/Bar	V
Threshold Current	≤18	A
Slope Efficiency / bar	≧1.0	W/A
Electro-optical Conversation efficiency	≧50	%
Duty Cycle	≤30%	/
Pulse Width	1~200	ms
Frequency	1~10	HZ
Water Flow	3.5~4.5	LPM
Water Temperature	18~28	℃
Water Pressure	0.3~0.4	℃
Water Quality	Pure water or denoised water Filter system≤30um	/

Portable Diode 808nm Hair Removal Laser Machine (6)ofn

How does it work?

The hair growth cycle is divided into three phases:

Anagen (Growth Phase)

Telogen (Resting Phase)

Catagen (Shedding Phase)

Only hairs in the anagen phase can absorb the laser energy and be destroyed.

The principle of 808 Laser Hair Removal is based on the theory of selective photothermolysis. The laser precisely targets and destroys the hair follicles without causing damage to the surrounding tissues. Different body parts require different wavelengths and energy levels for hair removal. The treatment precisely targets melanin for selective hair removal.

After melanin absorbs the laser energy, the temperature rises sharply, leading to the destruction of the surrounding follicular tissue and the removal of hair.

Portable Diode 808nm Hair Removal Laser Machine (7)u61

Advantages

1. Targeted Therapy: The 808nm wavelength specifically targets melanin in hair follicles, ensuring effective treatment with minimal impact on surrounding skin.

2. Versatility: Suitable for all skin types, the 808 laser adapts to various hair colors and skin tones, providing a universal solution for hair removal.

3. Speed and Efficiency: With its rapid pulse technology, larger areas can be treated quickly, making it an efficient choice for both full-body and spot treatments.

4. Long-Lasting Results: The 808 laser's ability to damage hair follicles at the root leads to long-lasting hair reduction, often with just a few sessions.

5. Safety: Advanced cooling systems protect the skin from thermal injury, making the procedure safe and comfortable.

6. Pain-Free: Many users report little to no discomfort during treatment, making it a gentle option for sensitive areas.

7. Portable: Lightweight volume reduces the body size while maintaining the original performance as much as possible, making it easier to transport or carry, while making the hair removal device more suitable for home use.
